Nome
/ Name |

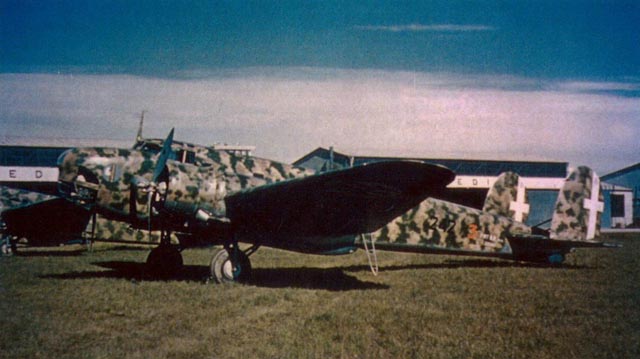

Fiat Br. 20 M
"Cicogna" |
Carattestistiche/ Type |
Bombardiere
medio monoplano bimotore |
Anno di Costruzione Year of constr. |
1936 |
Primo Volo/ First flight |
10 febbraio 1936 |
Progettista/ Eng. |
Ing. Celestino
Rosatelli |
Equipaggio n. /Crew |
5 |
Ap. Alare / mt. Span wings |
21,56 |
Lunghezza/ mt. Lenght |
16,10 |
Altezza/ mt. Height |
4,30 |
Sup. Alare mq / Wing area |
74,00 |
Motore -i / Power Plant-s |
2 Fiat A.80 RC41
da 1000cv ciascuno a mt.4100 |
Peso max / Max weight |
9900 kg. |
Peso a secco / Empty weight |
6400 kg. |
Carico utile / Loaded weights |
1600 di bombe o
spezzoni |
Armamento / Armament |
1 mitr. da 12,7
mm + 2 mitr. da 7,7mm |
Vel.
max/ Max speed |
432 km/h a
5000mt. |
Tangenza prat. / |
9000 mt. (max) |
Autonomia / Range |
3000 km
|
Produzione / Production |
circa 600
esemplari |
